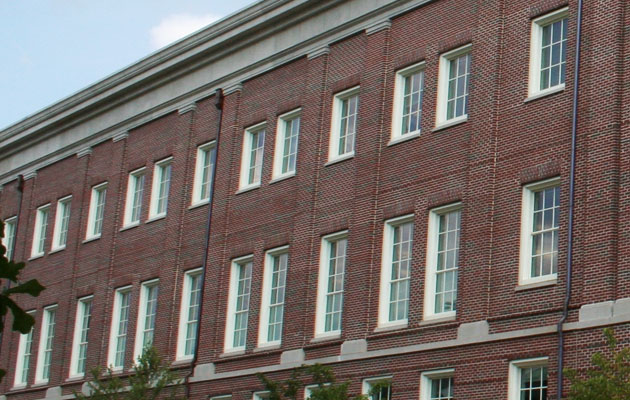

The series FX45 fixed window is a 4-1/2" deep system designed to meet the most stringent energy code requirements. This window can be used in schools, hospitals, government, and multi-family buildings. The system comes with a complete line of subframe, mullions, panning and trim to accommodate installation into both new and retrofit construction projects. The FX45 comes with an exterior snap-in grid to meet the aesthetic requirements found in many of today's historic replica projects. With exceptional air infiltration and thermal performance, the FX45 is a superior solution designed to help achieve energy-savings and human comfort in today's built environment.


Accessory line of subframes, mullions, and architectural sills
Allows custom designs with standard product
Thermally broken frames
Capable of dual finish applications
Exterior snap-in-grid
Easily removable grid for glass cleaning
Thermally broken frames
Enhanced thermal performance
Up to 1-1/2" glass thickness
Provides design flexibility to meet additional thermal and/or acoustic performance needs
Variety of panning and interior trim available
Simplify installation and match existing sightlines and aesthetic features
4 1/2" Frame Depth
Superior structural performance compared to shallower window depths
Anodized or painted finishes available
Unlimited options to answer economic and aesthetic concerns
