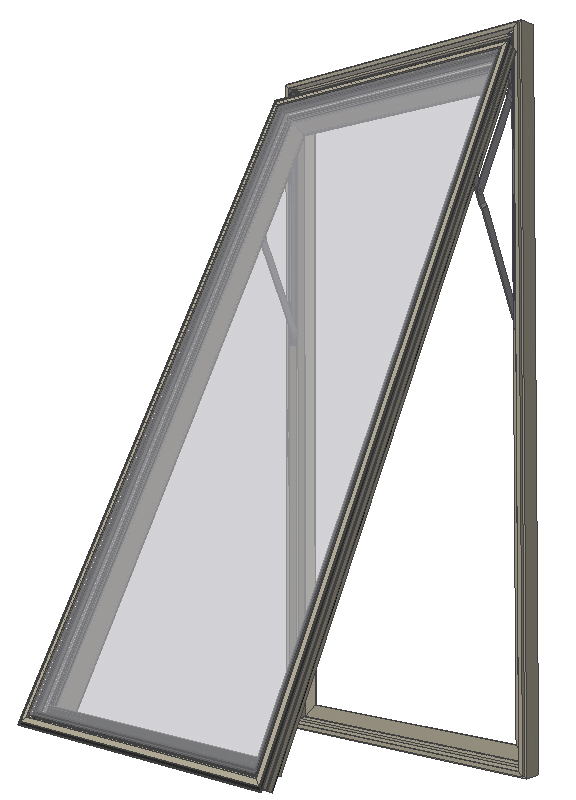

The WV430 storefront vent system is designed to be field glazed and installed with a minimal amount of labor. These vents are offered in two configurations: out-swing casements and project-out vents. Although the WV430 vent is designed to complement the flush glazed storefront, it may be glazed into any framing system with a flush surface opening and minimum frame depth of 3 1/2". The WV430 vent system is designed to incorporate many types of hardware configurations; including 4 bar hinge, multipoint locks, cam locks and roto-operators.


1/4" and 1" glazing options
Allows for a wider range of infill, spandrel, shadow box, stone panels, etc.
Multi-point locking hardware
Field adjustable (jamb to jamb - height adjustment and sash closing pressure)
Structural glazing
Smaller sightline
Screen frames are extruded aluminum alloy
Stronger more durable screens
Anodized or painted finishes available
Unlimited options to answer economic and aesthetic concerns
Screens available
Ventilation
