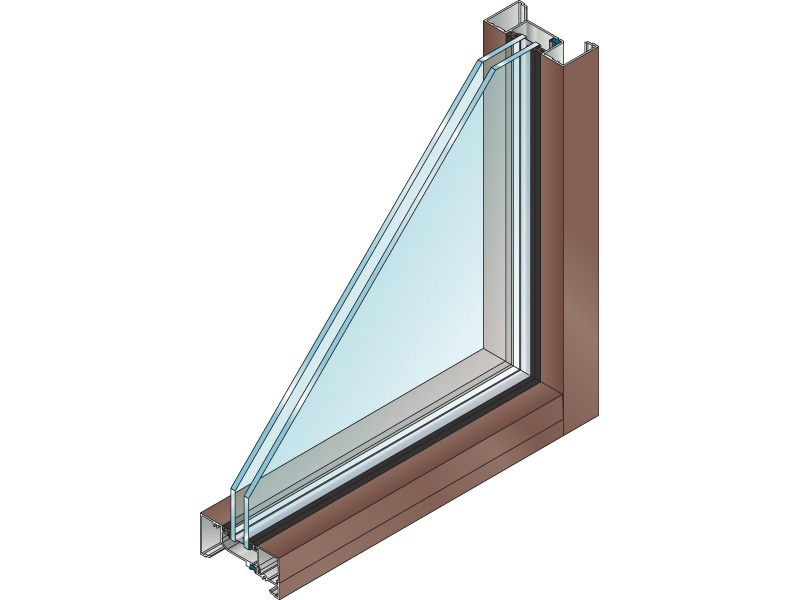

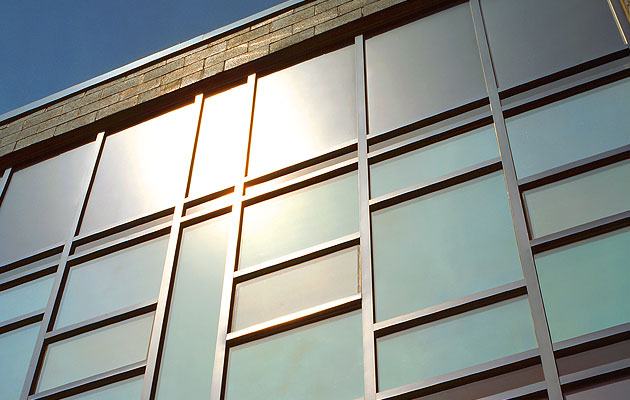

This economical flush glaze system is available in both shear block and screw spline fabrication methods. Series 403 storefront can accommodate all standard 1 3/4" entrances as well as WV410 vents. This series is thermally broken, enhancing energy savings potential. Vertical mullions will accept steel reinforcement to enhance structural performance.

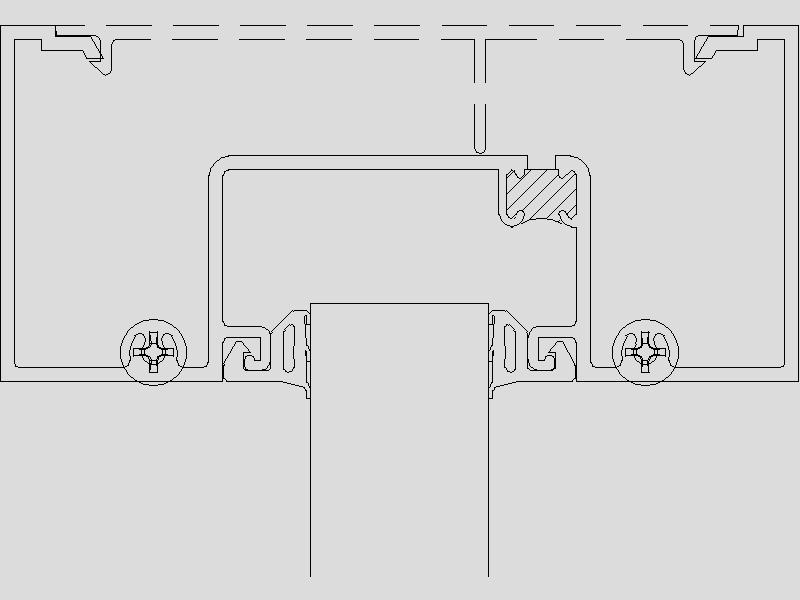

Screw spline construction
Allows assembly of sections prior to installation
Decreases installation time

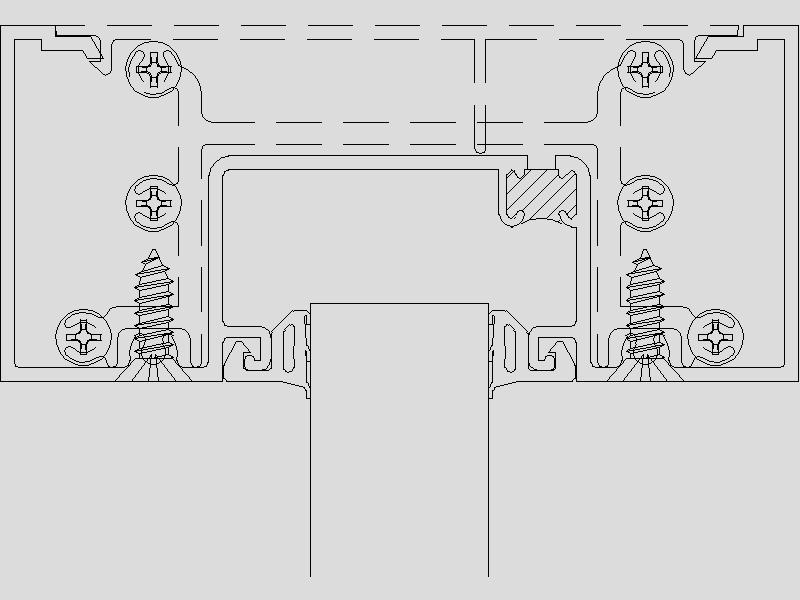

Shear block construction
Ability to erect on the job site
The optional Roto-Vent ventilator
Allows fresh air into the room, yet maintains security
2-way corner mullions (90° & 135°)
Design flexibility
3-way corner mullions (T-mullions)
Multifaceted elevations
0°-15° and 15°-30° variable mullions
Custom applications
Accommodates up to 1 1/16" glazing
Expands design and energy savings options
Uniform glazing gasket is used for exterior and interior
Allows optimized use of gasket
Simplifies ordering and installation

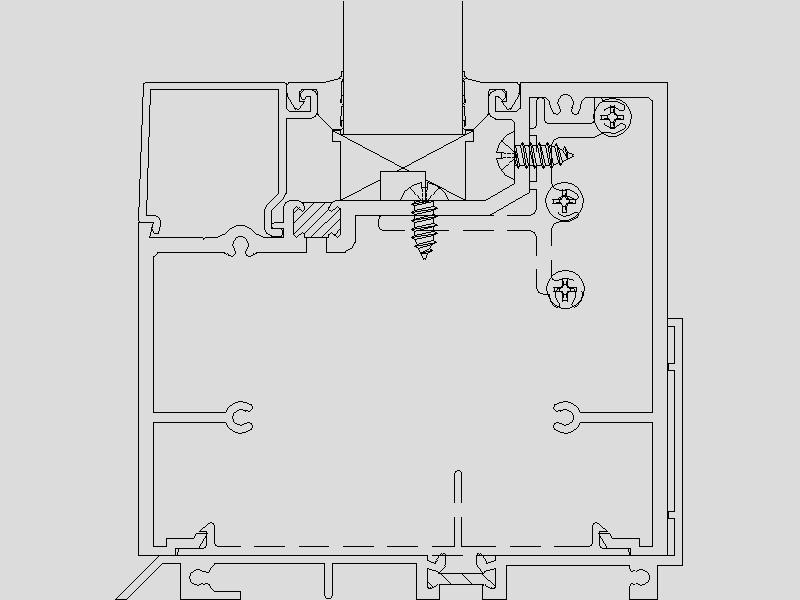

Various height intermediate horizontals and sills
Ability to maintain desired sight line
Accessory line of perimeter anchors, pocket fillers, door adaptors, etc.
Increased product versatility
Anodized or painted finishes available
Unlimited options to answer economic and aesthetic concerns
