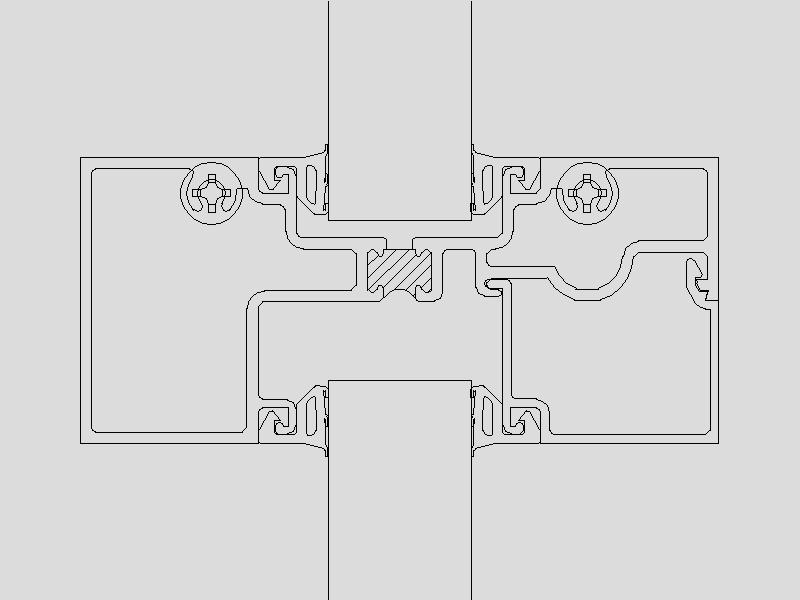

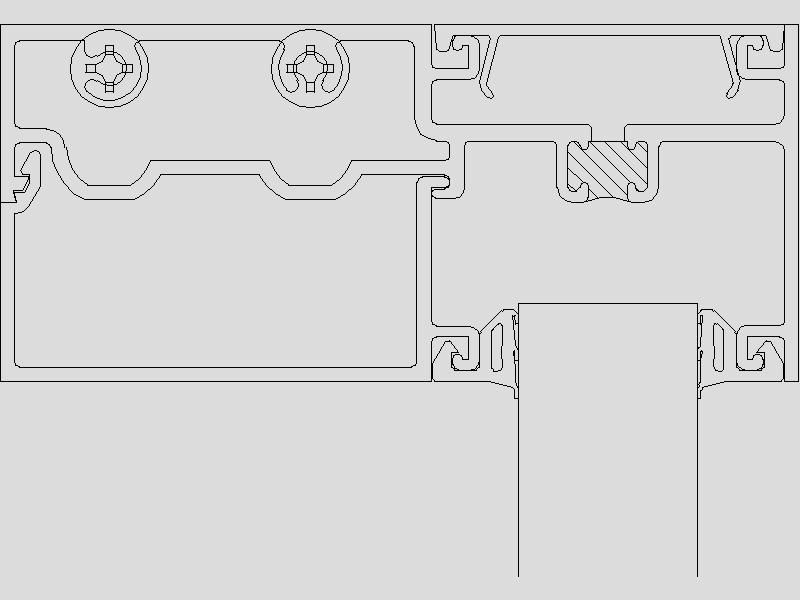

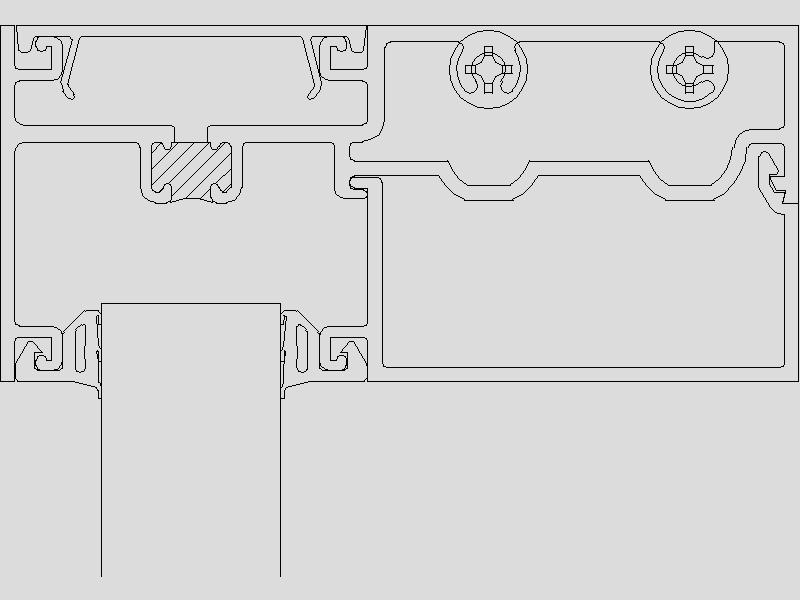

Series 433 is a thermally broken storefront framing system. Glass planes can be placed in an outside set, center set or inside set configuration, which gives the design flexibility to meet any multi-plane glazing specification. Series 433 is compatible with all EFCO entrances.

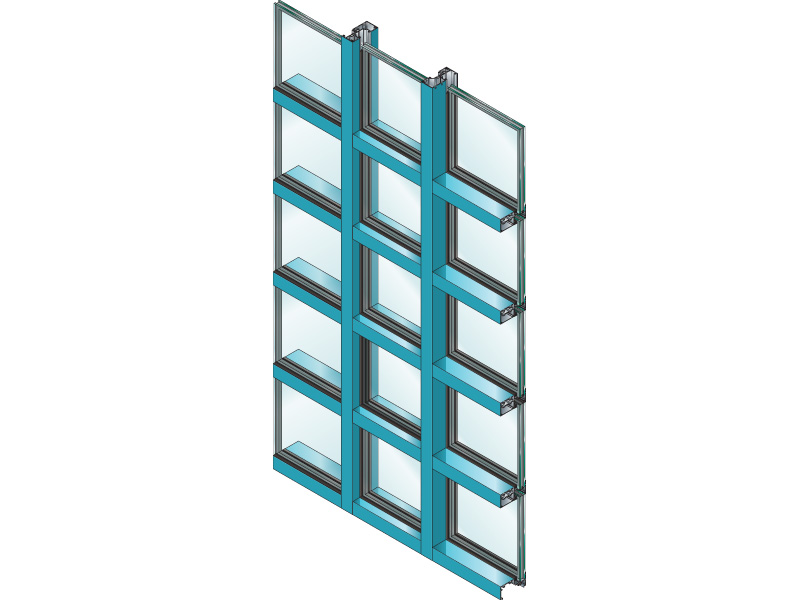

Three glass planes
Create shadow box effect, match vision of architect
Thermally improved frames
Enhanced thermal performance
All joints and horizontal mullions are square cut
Allows quick fabrication in the field
Facilitates shop fabrication of "ladders" that can be transported as a unit to job sites for quick installation
Door frames will accommodate glass in three planes
Accommodates multifaceted elevations
Glass plane effect can continue at door frames
90° and 135° inside and outside corner mullions
Accommodates mulifaceted elevations
Utilizes a common mullion with standard verticals attached to reduce number of dies
All joint fasteners are #12 screws
Simplifies fabrication
Strengthens system to allow transportation of ladders without damage to joinery system
Steel is available for mullions as stock steel bars or custom fabricated steel shapes
Allows system performance enhancements
Eliminates the cost of customer steel fabrication
Accommodates up to 1 1/16" glazing
Energy savings options
Inside or outside glazing in all glass planes
Allows flexibility of construction methods
Uniform glazing gasket is used for exterior and interior
Allows optimized use of gasket
Simplifies ordering and installation
Anodized or painted finishes available
Unlimited options to answer economic and aesthetic concerns
Stock length or fabricated
Provides customers with an option
  • Door Framing

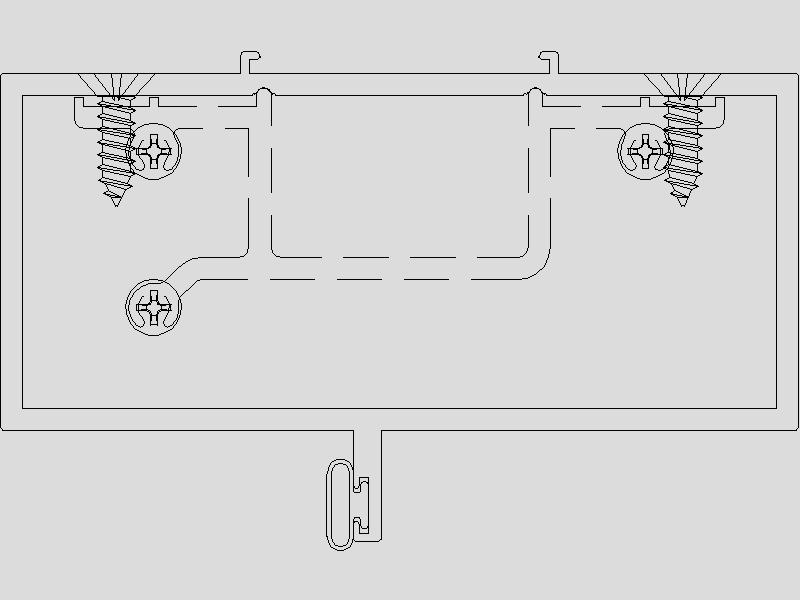

    Door Framing
