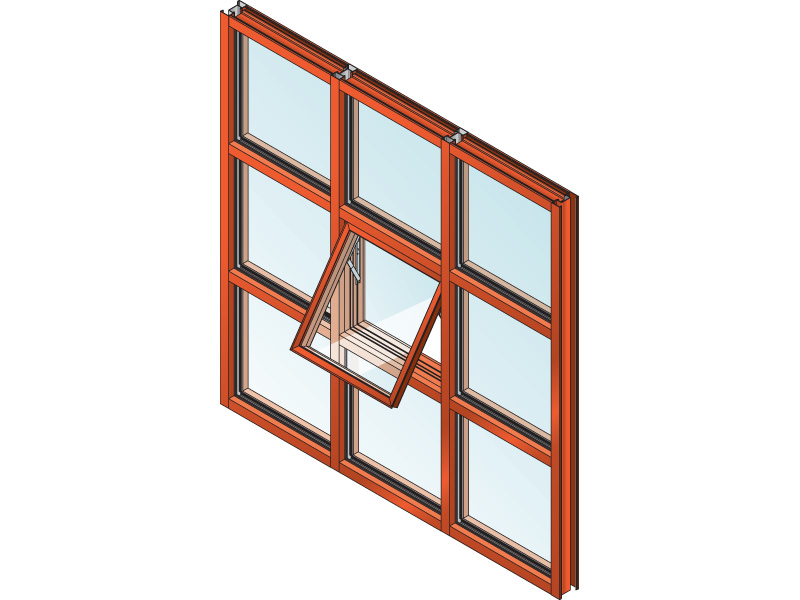

The WV410 storefront vent system is designed to be field glazed and installed with a minimal amount of labor. These vents are offered in two configurations: out-swing casements and project-out vents. Although the WV410 vent is designed to complement the flush glazed storefront, it may be glazed into any framing system with a flush surface opening and minimum frame depth of 3 7/16".

Thermally broken vent frames
Enhanced thermal performance
Designed to use with storefront systems
Allows operable vent in fixed frames
Minimal additional metal sightline
Spans up to 1 1/8" wide glazing pocket
Can be used in retrofit applications
Accommodates 1/4" and 1" glazing
Expands design and energy savings options
Interior face of the intermediate mullion aligns flush with storefront horizontal
The plane of the metal does not appear offset
Removable glass stop combination glazing leg
Seals the perimeter glass face
Minimal sightline meeting rail available
Maintain the appearance of ribbon applications
Screens available
Ventilation
Screen frames are extruded aluminum alloy
Stronger more durable screens
Anodized and painted finishes available
Unlimited options to answer economic and aesthetic concerns
