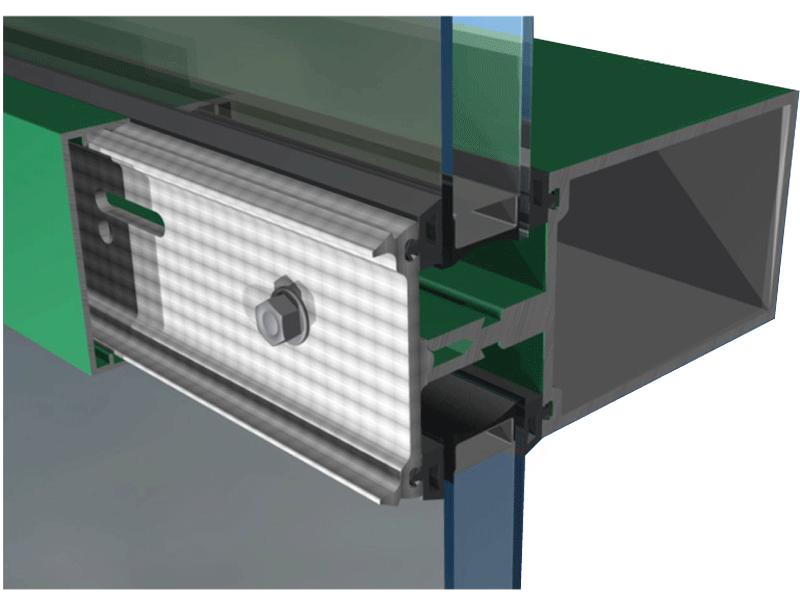

The thermal qualities of EFCO's 5600 curtain wall system are enhanced with the addition of a  fiberglass pultruded material. Utilizing this advanced technology, EFCO has designed a pressure plate that is far superior to the aluminum pressure plate for thermal conductance, while providing an overall 27% gain in frame and glass U-factor and 10% improvement in CRF. The use of fiberglass also eliminates the need for a thermal isolator between the mullion and pressure plate.

Thermal isolator not required
Fewer installation steps
Alternative to aluminum pressure plate
Comparable structural values
  • Outside Glazed Center Tongue

    Outside Glazed Center Tongue

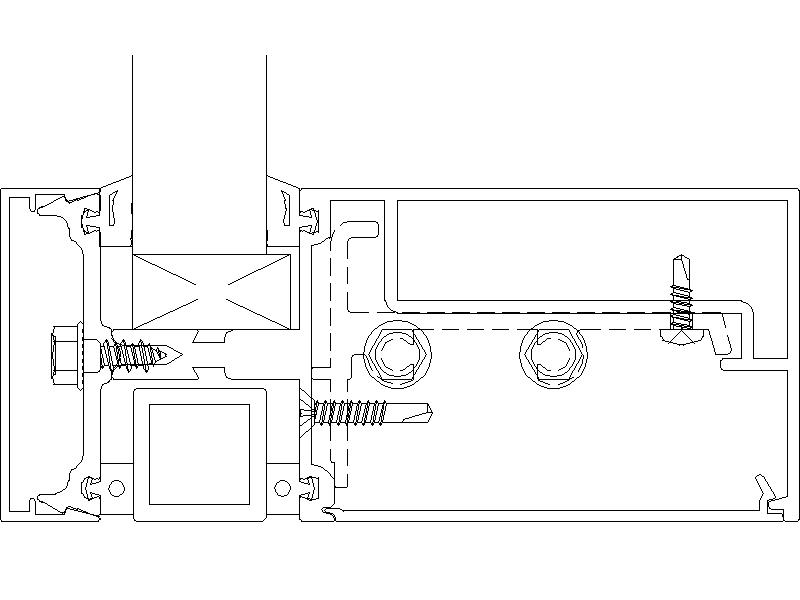

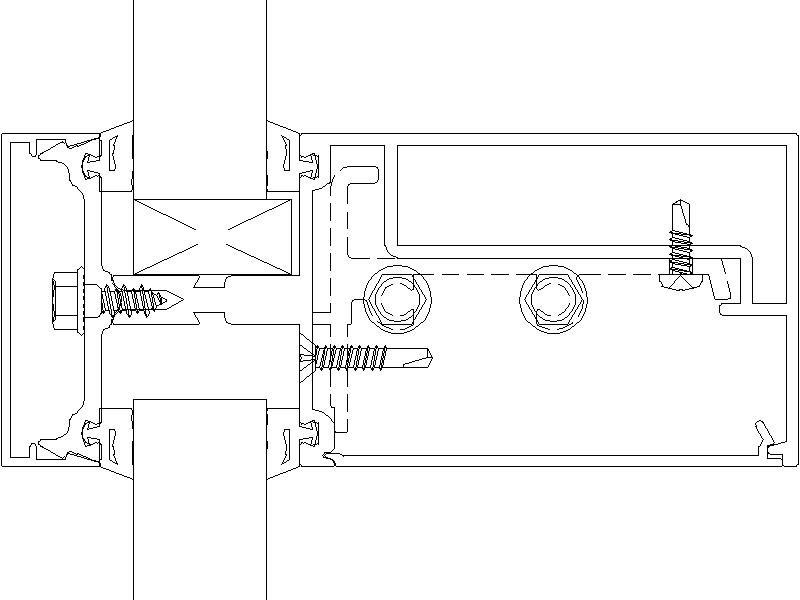

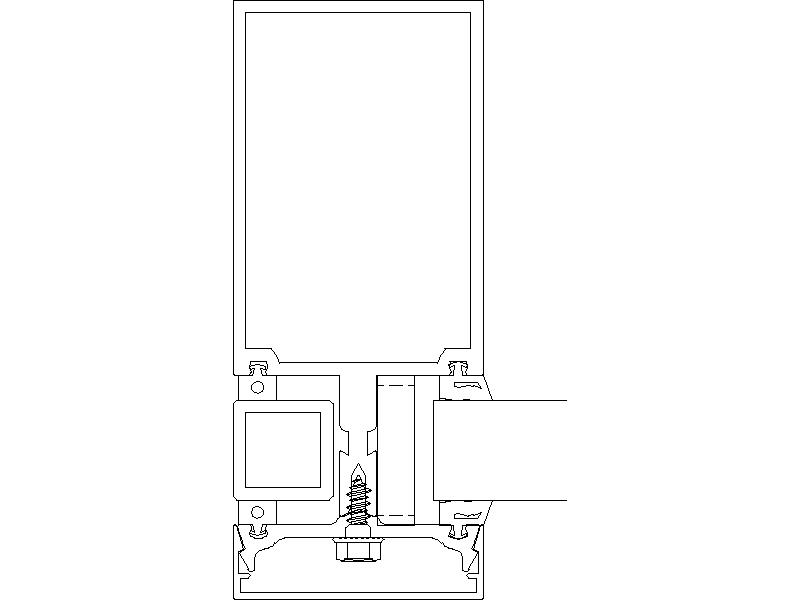

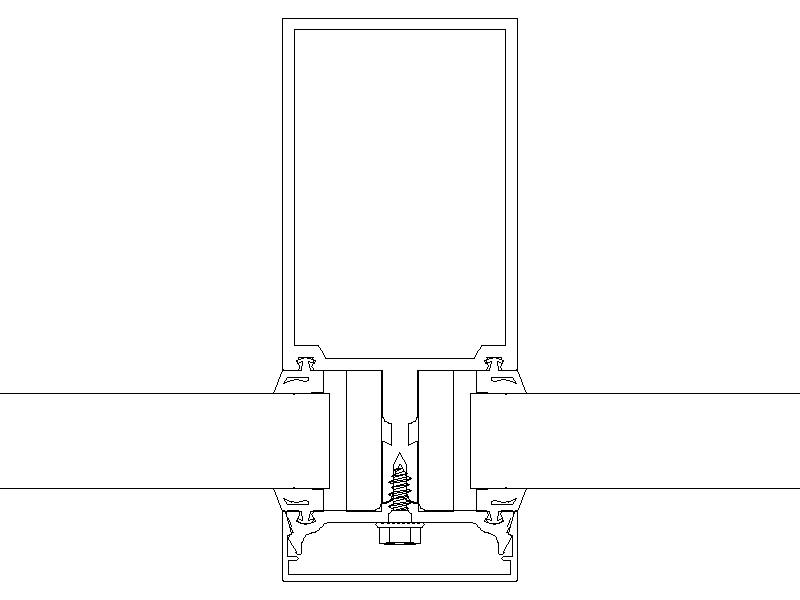

    Details
