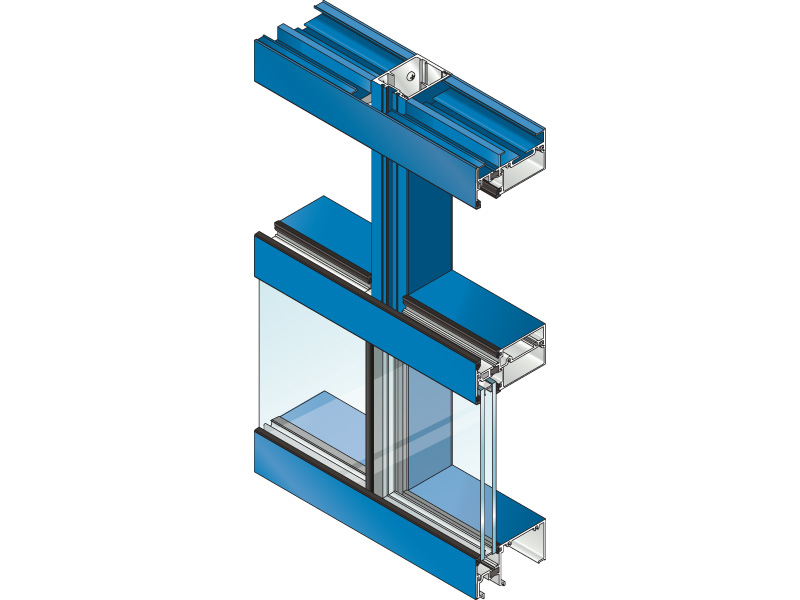

This Quick Set product has an advantage over other framing systems due to minimum fabrication and installation steps. System 945 is provided in stock lengths for field fabrication. Entrance door framing is a designed part of the system that can accommodate 1 3/4" and 2" doors.

All joints and horizontal mullions are square cut
Allows quick fabrication in the field
Facilitates shop fabrication of "ladders" that can be transported as a unit to job sites for quick installation

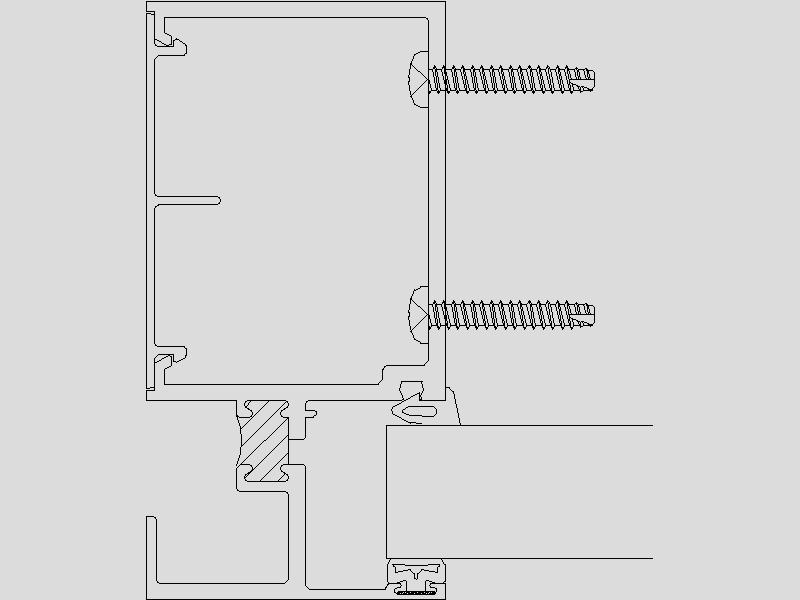

Unique door jamb is notched to allow the sill flashing to butt directly to a solid surface
Compatible with 1 3/4" and 2" doors
Thermally improved frames
Enhanced thermal performance
Accommodates up to 1" glazing
Expands design and energy savings option

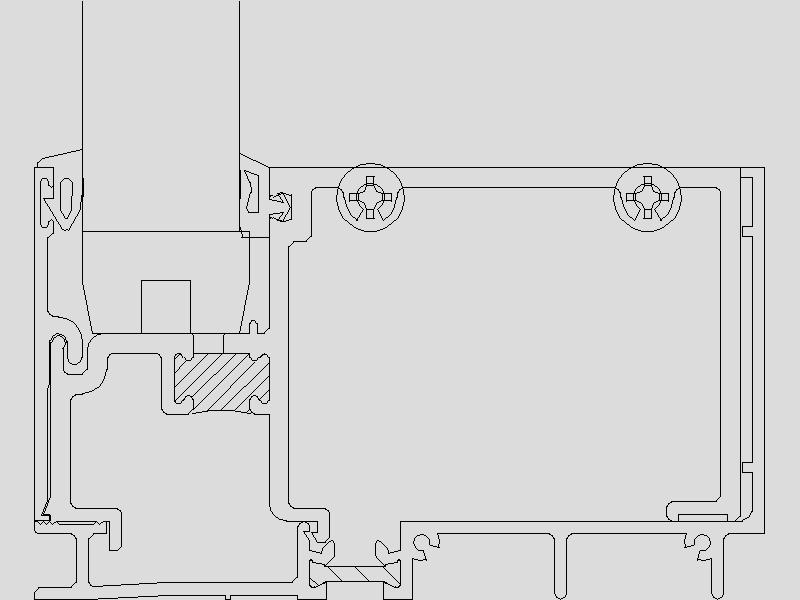

Unique door jamb is notched to allow the sill flashing to butt directly to a solid surface
Provides a watertight seal at the sill flashing
Optional face cap
Individual interior and exterior finish capability
Provides ribbon wall appearance
Silicone structural glazed vertical mullions used with horizontal mullions designed to accept a full-length cover that spans the vertical mullions
Gives horizontal-through appearance
Shallow intermediate horizontals used with interior blinds (optional)
Allows applied blinds to pass the intermediate horizontal without interference
All fasteners are #12 screws
Strengthens system to allow transportation of ladders without damage to joinery system

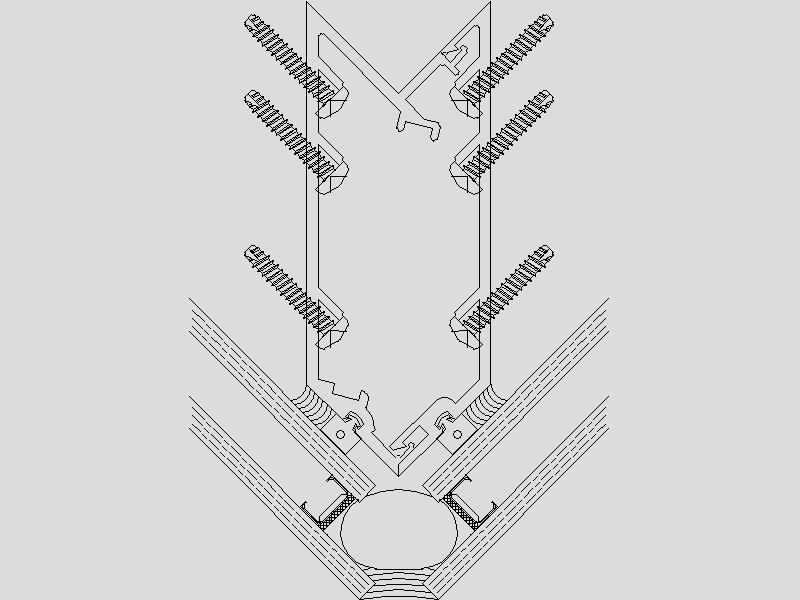

90° inside and outside corner mullions
Accommodates multifaceted elevations
Accepts standard-sized steel stock bar at 1/4" x 2 3/4" or 1/4" x 2 1/2" (when required)
Eliminates the cost of custom steel fabrication
Inside (standard) or outside glazing (optional)
Allows flexibility of construction methods
Anodized or painted finishes available
Unlimited options to answer economic and aesthetic concerns
