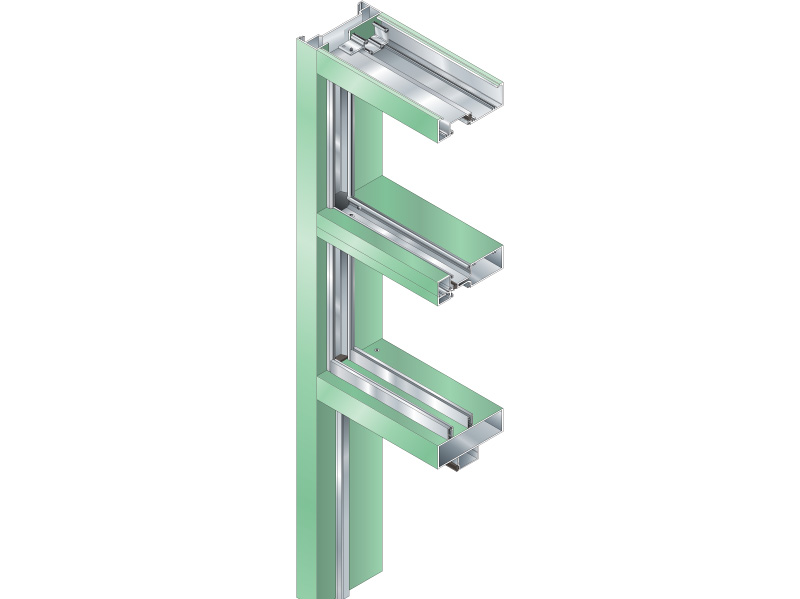

Series 406 extends beyond the standard level of conventional storefronts. An inside and/or outside glazed configuration is available as well as a glazing infill from 3/16" to 1-1/16". Series 406 has a 6 1/2" system depth providing improved structural capability. Series 406 is compatible with all EFCO entrances.

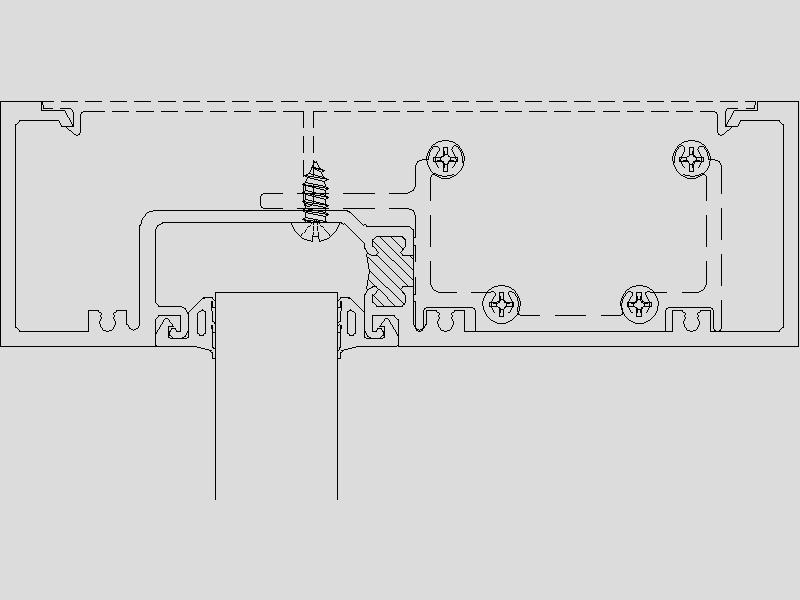

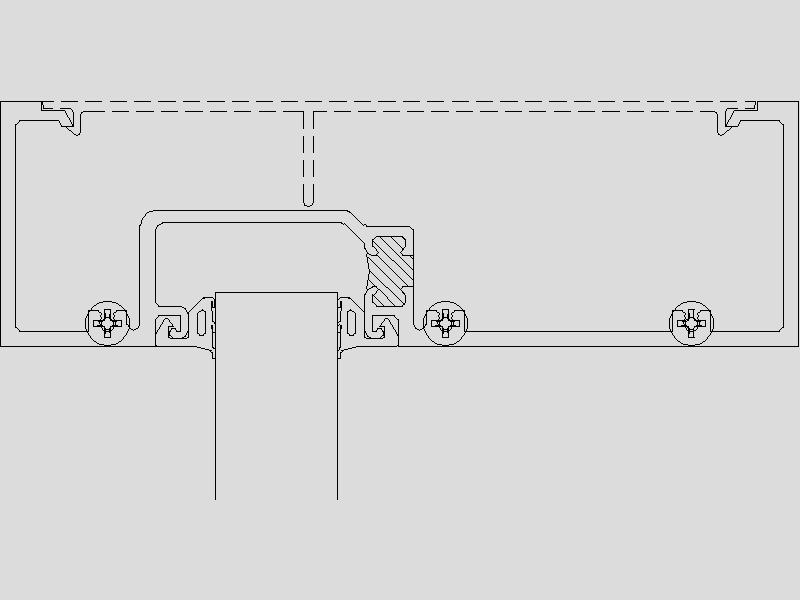

- Screw spline frame and door side lite frame assembly
- Can be shop prepped
- Makes installation easier, reducing labor cost
- Thermally improved frames
- Enhanced thermal performance

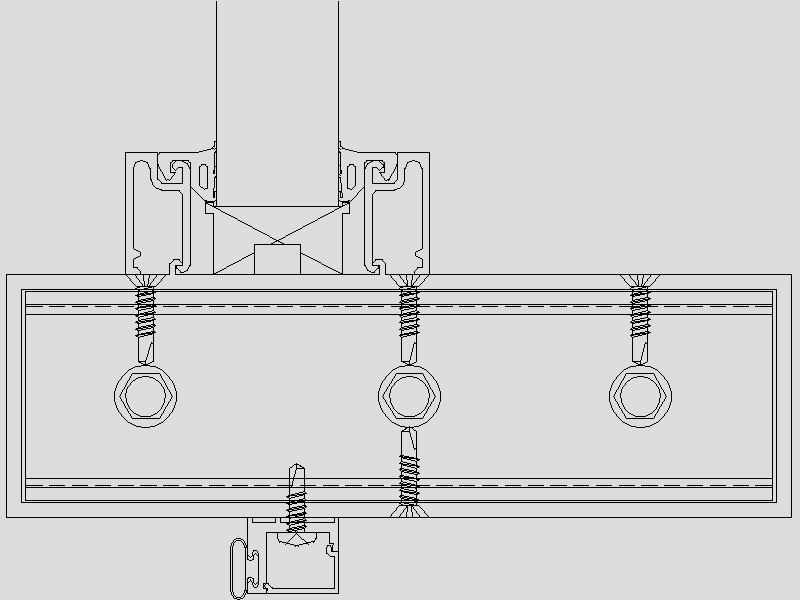

- Shear Block assembly at door frames
- Can be shop fabricated
- Compatible with all 1 3/4" EFCO doors
- Contact EFCO Product Technical Support Department for 2" Doors
- Will accommodate all standard closers and hinging
- Uniform glazing gasket is used for exterior and interior
- Allows optimized use of gasket
- Simplifies ordering and installation
- 2" x 6 1/2" frame size
- Allows taller storefront elevations due to greater I value
- Will allow standard 2" x 4 1/2" storefront to be integrated into the elevation because glass planes match
- Accommodates up to 1 1/16" glazing
- Expands design and energy savings options
- Anodized or painted finishes available
- Unlimited options to answer economic and aesthetic concerns
