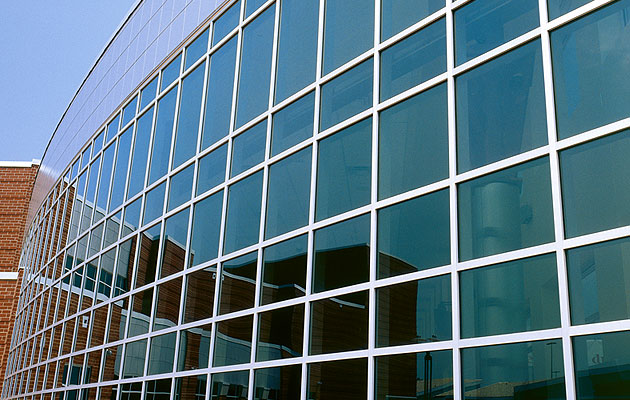

The 5500 curtain wall system is designed to meet the most demanding performance specifications. System 5500 utilizes the E-Strut™ thermal isolator, providing outstanding thermal properties and a total composite shape for enhanced structural performance. System 5500 offers dual finish capability to meet any design finish specification. The system also provides significant labor reductions since the pressure plate and cover do not require field assembly.
- Acoustic Curtain Wall
- Improved sound reduction - STC rating of 30 or greater
- Various mullion depths available
- Design flexibility
- Accommodates up to 1" glazing
- Expands design and energy savings option
- Anodized and painted finishes available
- Unlimited options to answer economic and aesthetic concerns
- Mullion anchors are not required for "standard" construction
- Easier installation
- Screw spline construction
- Allows assembly of sections prior to installation
- Decreases installation time
- Temporary glazing clips are not required
- Field glazing is quicker
- Less field labor required

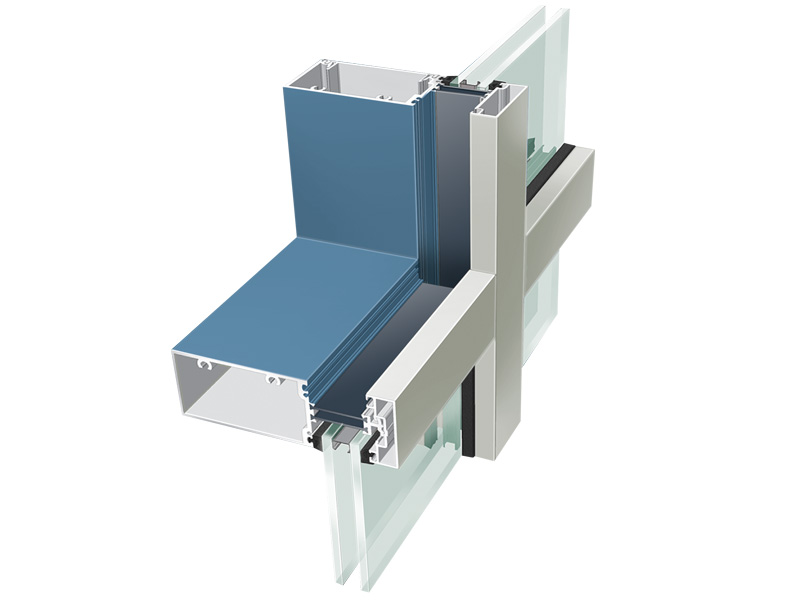

- Composite mullion
- Eliminates traditional screw-on pressure plate and snap-on cover
- E-Strut™ thermal isolator
- Completely eliminates dry shrinkage
- Improves thermal performance and enhances energy saving potential
- Integral door adaptors
- Compatible with all 1 3/4" EFCO doors
- Contact EFCO Product Technical Services for 2" Doors
- Splices and internal steel reinforcement
- Multi-span capability
- Accessory line of perimeter anchors, pocket fillers, door adaptors, etc.
- Increased product versatility
- Optional corner mullions
- Allows 90° and 135° outside corners
- Wide variety of snap-on face covers
- Customize projects with face covers of various depths and profiles
