EFCO 2 1/2" System 5600 is available in a wide range of mullion and face cover depths. This system features roll-on horizontals and concealed fasteners, which provides uninterrupted joinery. Please contact EFCO's Product Technical Support Department for Blast / DoD applications.
- Acoustic Curtain Wall
- Improved sound reduction - STC rating of 30 or greater
- Thermal isolator used between exterior and interior extrusions
- Improved thermal performance
- Roll-on horizontals
- Concealed fasteners, reduced installation labor
- Various mullion depths available
- Design flexibility

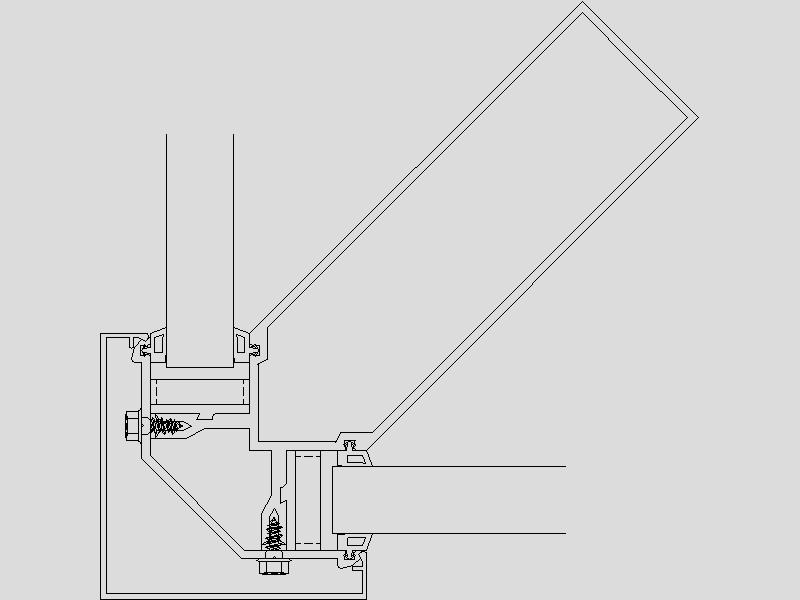

- Optional corner mullions
- Allows 90° and 135° inside and outside corners
- Wide variety of snap-on face covers
- Customize projects with face covers of various depths and profiles
- Shear block construction
- Ability to erect on the job site
- Integral door adaptors
- Compatible with all 1 3/4" EFCO doors
- Contact EFCO Product Technical Services for 2" Doors
- Accommodates up to 1 5/16" glazing
- Expands design and energy saving options
- Accessory line of perimeter anchors, pocket fillers, door adaptors, etc.
- Increased product versatility
- Anodized and painted finishes available
- Unlimited options to answer economic and aesthetic concerns
Monolithic
DetailsElevations
Outside Glazed Center Tongue
DetailsElevationsOutside Glazed Center Tongue
DetailsElevationsOutside Glazed Center Tongue
DetailsElevations
Outside Glazed Center Tongue Door Frames
DetailsElevationsOutside Glazed Center Tongue Door Frames
DetailsElevationsOutside Glazed Center Tongue Door Frames
DetailsElevationsOutside Glazed Center Tongue Door Frames
DetailsElevationsOutside Glazed Center Tongue Door Frames
DetailsElevationsOutside Glazed Center Tongue Door Frames
DetailsElevations
Structural Glazed
DetailsElevations
